WALK-BEHIND FLAT SAW RENTALS
WALK-BEHIND FLAT SAW RENTALS NEAR ME
QUICK MENU
MK CX-3 | Norton C1318P | Multiquip SP2S20H | Diamond Products CC1823BVXLP | Husqvarna FS3500G
CLICK ON THE MODEL TO VIEW
MK CX-3 WALK-BEHIND GAS SAW
The CX-3® Walk-Behind Concrete Saw is for small to medium jobs that require power and portability. This compact, lightweight saw has been engineered for maneuverability and reliability. The built-in water distribution system supplies water to both sides of the blade. It is designed to cut within 1" of wall or curb.
List of Services
-
Compact & ReliableList Item 1
Compact, lightweight, engineered for maneuverability and reliability
-
Accurate CutsList Item 2
Cuts within 1" of wall or curb
-
Multi UseList Item 3
Can be used for wet or dry cutting
-
Corrosion ResistantList Item 4
Corrosion resistant cast-aluminum blade guard
-
Built-In Distribution
Built-in water distribution system supplies water to both sides of blade
-
Minimal Vibration
Sturdy single piece steel motor mount weldment to minimize vibration
-
Self Aligning
1" diameter blade shaft with self aligning bearings
-
Easy Access
Hinged blade guard provides easy access for blade changes and inspection
-
Compact Transport
Folding handle bar for compact transport
-
Power Transmission
Poly V-belt for positive power transmission
| MK CX-3 GAS SAW | |
|---|---|
| Engine | Honda GX160 |
| Blade Capacity | 14" (356mm) |
| Blade RPM | 3,600 |
| Arbor Size | 1" (25mm) |
| Depth of Cut | 5-1/2" (140mm) |
| LxWxH (inches) | 32" x 19" x 42" |
| LxWxH (mm) | 813 x 483 x 1,067 |
| Weight | 116 lbs. (53 kg.) |
NORTON C1318P WALK-BEHIND GAS SAW
The next generation of 13HP saws. The C1318P features shock-absorbing handle bars. The new sleek design of the water tank, with increased capacity and improved securing, adds an additional 1.5 gallons of water over the cut. And, a newly-designed belt tensioning system helps keep the saw cutting tried and true. All these features, coupled with the Honda 13HP engine, makes the C1318P the premiere choice for rental and service work.
List of Services
-
Reduced VibrationsList Item 1
Shock-absorbing handle bars reduce vibrations up to 40 percent
-
Quick & Hassle FreeList Item 2
Fast and no hassle blade guard securing lock
-
Quick Belt TensioningList Item 3
Fast and accurate quick belt tensioning
-
New Sleek DesignList Item 4
New sleek design of the water tank allows for increased capacity and improved securing that adds 1.5 gallons of water over the cut
| NORTON C1318P | |
|---|---|
| MAX BLADE DIAMETER | 18 In. |
| MAX CUTTING DEPTH | 7 In. |
| ARBOR HOLE | 1 In. |
| BLADE FLANGE DIAMETER | 4 In. |
| ROTATION SPEED | 2573 |
| MOTOR/ENGINE TYPE | Honda |
| SIDE OF CUT | Left or Right |
| POWER SOURCE | Gas |
MULTIQUIP SP2S20H
Multiquip's Street Pro SP2 self-propelled slab saws offer the proven design and engineering to take on the toughest diamond sawing tasks.
List of Services
-
Blade GuardList Item 1
20" Blade Guard
-
WeightList Item 2
Weighs 395 lbs
-
AdjustableList Item 3
Adjustable Handle Bar
-
Cut DepthList Item 4
Cuts to depths up to 7.5 inches
-
Powerful Engine
Powerful Honda GX630 Gasoline Engine, Electric Start
-
Industrial
Industrial Blade Shaft Assembly
-
Built-In Tank
Built-In Water Tank
-
Hydrostatic Transmission
Trusted Hydostatic Transmission for Easy FWD/REV propulsion
| MULTIQUIP SP2S20H | |
|---|---|
| Power Source | 18 HP Honda GX620 Electric Start |
| Blade Capacity | 20 in |
| Cutting Depth | 7.5 in |
| Front Wheel Bearing Mounted | 5 in Dia. x 2 in Wide |
| Rear Wheel Bearing Mounted | 8 in Dia. x 2 in Wide |
| Overall Length | 72 in |
| Overall Width | 23.75 in |
| Overall Height | 36.25 in |
| Operating Weight | 395 lb |
DIAMOND PRODUCTS CC1823BVXLP WALK-BEHIND PROPANE SAW
List of Services
-
Briggs Vanguard EngineList Item 1
Briggs Vanguard engine converted to propane vapor draw
-
20lb Propane TankList Item 2
Horizonally-mounted 20 lbs. propane tank
-
Self-Propelled TravelList Item 3
Self-propelled travel for easy cutting
-
Heavy-Duty IsolatorList Item 4
Easy access to battery with a heavy-duty isolator switch to prevent battery drain
-
Screw Feed Raise
Screw feed raise and lower system
-
Lifting Hook
Lifting hook standard on all models
-
Self-Aligning
Self-aligning blade shaft bearings
-
Special Features
Includes: electric start, low oil alert, and hour meter
| MULTIQUIP SP2S20H | |
|---|---|
| Power Source | 18 HP Honda GX620 Electric Start |
| Blade Capacity | 20 in |
| Cutting Depth | 7.5 in |
| Front Wheel Bearing Mounted | 5 in Dia. x 2 in Wide |
| Rear Wheel Bearing Mounted | 8 in Dia. x 2 in Wide |
| Overall Length | 72 in |
| Overall Width | 23.75 in |
| Overall Height | 36.25 in |
| Operating Weight | 395 lb |

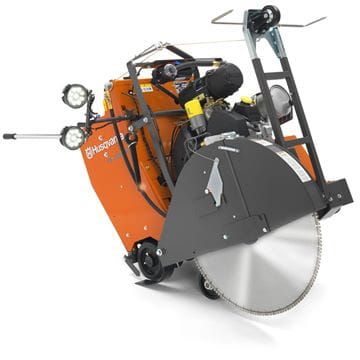

HUSQVARNA FS3500G GAS WALK-BEHIND SAW
FS 3500 G is a self-propelled floor saw ideal for small to medium patch and service jobs. Equipped with a 37 hp (27.5 kW) Kohler gasoline engine. It is lightweight, low profiled, easy to maneuver and service. The Poly-V belt together with a self-adjusting belt tensioner ensures stable power levels at the blade shaft. Cutting depth capacity up to 12-3/8" (311 mm) with a 30" (750 mm) diamond blade. Comes standard with adjustable handle bars, engine tachometer and hour meter. Water pump kit and light kit available as options.

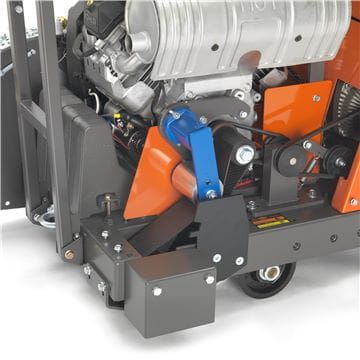

Automatic Belt Tensioner and Poly-V Belt
Offers no maintenance, lower cost of ownership, consistent power and increased production.

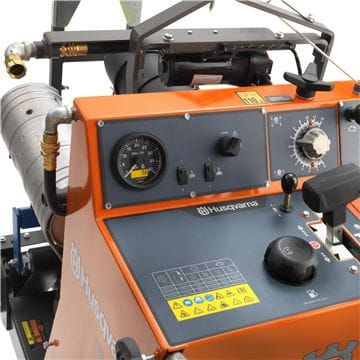

Classic and Intuitive Control Panel
Includes engine tachometer and water safety system.

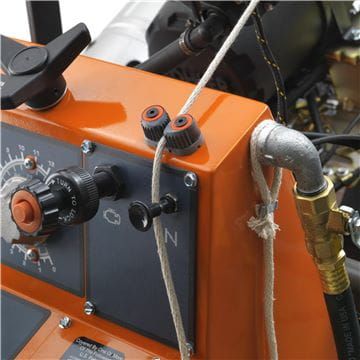

Clam Cleat Pointer Rope Holder
Reduces pointer rope damage and holds front pointer at a set height.
Options Include LED Light-Kit and Water Pump Kit
LED offers lower electrical power consumption and water pump kit allows cutting with low water pressure and flow.
| HUSQVARNA FS3500G | |
|---|---|
| Output power (As rated by the engine/motor manufacturer) | 37 hp |
| Engine cooling | Air |
| Arbor diameter | 1 in |
| Blade depth control | Electric hydraulic |
| Blade diameter, max | 20 in |
| Cutting depth, max | 12.5 in |
| Transmission speed reverse | 167 fpm |
| Transmission speed forward | 167 fpm |
| Product size length | 46 in |
| Product size width | 31.8 in |
| Product size height | 45.4 in |
| Weight | 950 lbs |
